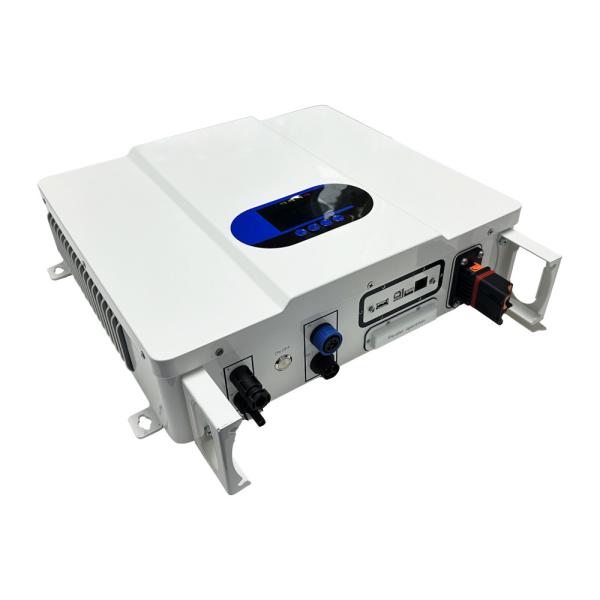

24V DC to 110V 220V 230V Pure Sine Wave Hybrid Inverter

Hybrid Inverter - Single Phase 3K/5K

Product Overview:
Our Hybrid Inverter is a cutting-edge energy solution designed to meet the evolving needs of modern homes and off-grid systems. Combining advanced technology with user-centric design, it offers a reliable, efficient, and scalable way to manage your energy requirements. Whether you're looking to harness solar power, create a backup system, or build a hybrid energy setup, this inverter delivers exceptional performance and adaptability.

Key Features:

1. Universal Battery Compatibility:
   The inverter is compatible with a wide range of low-voltage batteries, including lead-acid and lithium-ion types. This flexibility ensures it can adapt to various energy storage configurations, making it a versatile choice for different applications.

2. Scalable Power Output:
   The 3K model provides a robust 3000W of power, while the 5K model delivers 5000W, catering to diverse energy needs. For larger systems, the 5K model supports parallel operation of up to 9 units, enabling significant scalability to meet growing energy demands.

3. High Energy Efficiency:
   With a peak efficiency of 93%, the inverter ensures maximum energy conversion, minimizing waste and optimizing power output. This high efficiency not only reduces energy costs but also supports sustainable energy practices.

4. Smart Monitoring and Control:
   The inverter features an easy-to-read LCD screen for real-time monitoring and control. Additionally, it supports remote management through a mobile app, allowing you to track and adjust your energy system from anywhere. This smart connectivity ensures you’re always in control of your power.

5. Advanced Cooling Technology:
   Equipped with an intelligent fan cooling system, the inverter maintains optimal performance even under heavy loads. This design enhances reliability and extends the lifespan of the device, ensuring consistent operation in all conditions.

6. Comprehensive Protection Features:
   The inverter includes multiple layers of protection, such as PV over voltage and current protection, battery over voltage and current protection, and output over current, short circuit, and over voltage protection. These features ensure the safety and stability of your system, even in challenging environments.

Technical Specifications:

• Battery Input:

  • Battery Type: U-100V/Ux64-Src4

  • Battery Voltage: 24VAC (3K model), 48VAC (5K model)

• PV Input:

  • Maximum PV Array Power: 4000W (3K model), 6000W (5K model)

  • MPPT Range Operating Voltage: 60V-115V

  • Maximum Solar Charge Current: 80A

• AC Output:

  • Maximum AC Charge Current: 120A

  • Voltage Range: 170-260VAC (for computers), 90-280VAC (for home appliances)

  • Frequency Range: 50/60 Hz

• General Specifications:

  • Communication: USB/Wi-Fi (GPRS, RS485/CAN, Dry-contact)

  • System Protection Rating: IP54

  • Dimensions: 300450110.5 mm

  • Weight: 12.5 kg (3K model), 13 kg (5K model)

  • Operating Temperature: -25°C to 60°C

  • Storage Temperature: -40°C to 70°C

Why Choose Our Hybrid Inverter?

• Adaptability: Works with a variety of batteries and supports scalable energy solutions.

• High Performance: Delivers efficient energy conversion with minimal losses.

• User-Friendly: Simple interface and remote monitoring for easy management.

• Dependability: Comprehensive protection features ensure safe and stable operation.

Applications:

• Residential solar power systems

• Off-grid and hybrid energy setups

• Backup power solutions for homes and businesses

Step into the future of energy management with our Hybrid Inverter – a smart, efficient, and reliable choice for all your power needs.

Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
