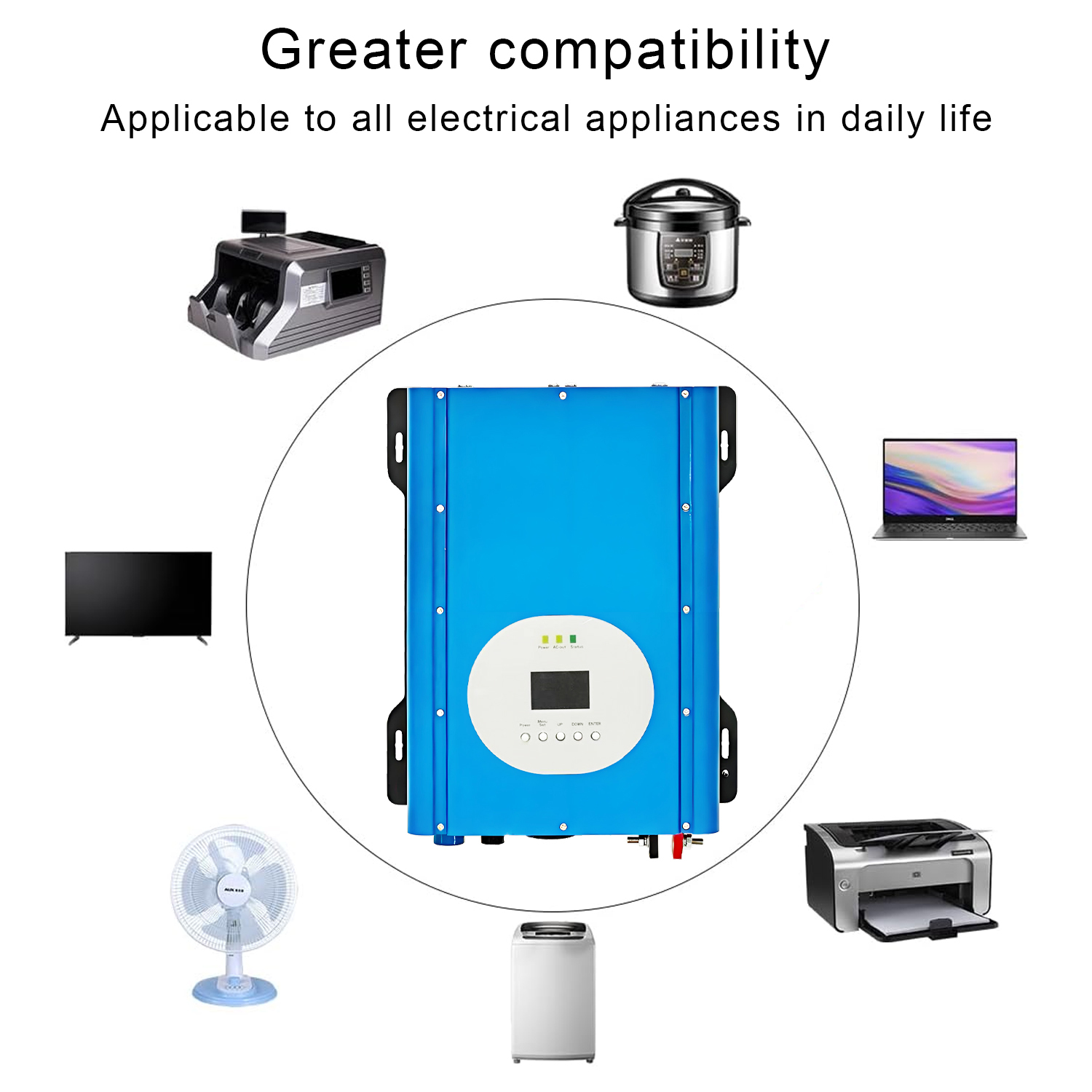

RA Series Bidirectional Inverter – Power Your World with Efficiency & Reliability
Product Overview
The RA Series Bidirectional Inverter is a high-performance power conversion solution designed for seamless energy management. With models ranging from 2000W to 3000W, it supports 12V/24V DC to 220V AC (or 110V AC) bidirectional conversion, enabling:
-
AC Charging: Charge batteries (lead-acid/LiFePO4/NCM) at up to 100A.
-
DC Inversion: Deliver stable 2000W–3000W AC output (peak power: 4000W–6000W).
-
Bypass Mode: Simultaneous charging and discharging (1400W + 1800W).
Key Features
✔ High Efficiency
✔ Advanced Protection
✔ Smart Control
-
Adjustable parameters (voltage, frequency, charging current) via LCD panel.
-
Supports CAN/485 communication for remote monitoring.
✔ Robust Design
-
Air-cooled with wide operating temperature (-10°C to +45°C).
-
Compact size (241×345×121mm), iron casing.
Applications
Safety Certified: Complies with IEC62388 and GB4943 standards.
Learn More: [Contact Us/Download Full Specs]
Electrical specifications |
| Model |
|
| Applicable Battery Type | Lead acid/LiFePO4/NCM battery |
| Charging Method | Constant current/constant voltage (CC/CV) |
| Cooling Method | Air Cooling |
| |
| Input | Voltage Range | 180~264VAC |
| Frequency Range | 47-63HZ |
| Maximum Effciency | ≥91% @220VAC |
| Maximum Current | 15Amax |
| PF value | ≥0.95 |
| Surge Current | ＜60ACold Start |
| Output | Rated Voltage | 13.2V (maximum charging voltage14.8V) |
| Rated Current | 100A |
| Maximum Power | 1400W |
| Voltage Accuracy | ±0.8V |
| Current Accuracy | ≤8% |
| Load Regulation | ≤5% |
| Dynamic Load Regulation | ≤5% |
| Battery Charging Voltage | 10.5V-14.5V |
| |
| Input | Voltage Range | 10.5~16V DC |
| Maxmum Effciency | 92% |
| Maximum Current | 180A 12.5V/280A 12.5VDC |
| Output | Rated Voltage | 220Vac @≥12.5 VDC |
| Rated Current | 13.64A @≥12.5VDC |
| Output Frequency | 50Hz/60Hz |
| Maximum Power | 2 000W (peak power4000W) @≥12VDC |
| 3000W (peak power6000W) @≥12VDC |
| Power Factor | ≥0.95 |
| THD | ≤3% (resistive load) |
| Bypass Power | 1800W.MAX(NA) |
| Charge And Discharge At The Same Time | Charge1400W+Bypass1800W(NA) |
| Bypass Inverter Switching Time | ≤30 ms (NA) |
| Others | Shell Material | Iron |
| Reference Weight | 6.1KG |
| Color | / |
| Reference Size | 241 * 345 * 121 mm |
| Reference Packaging | / |
|
|
|
