Solar Inverter UD Series – Efficient Energy Conversion, Reliable Power Supply
Product Overview

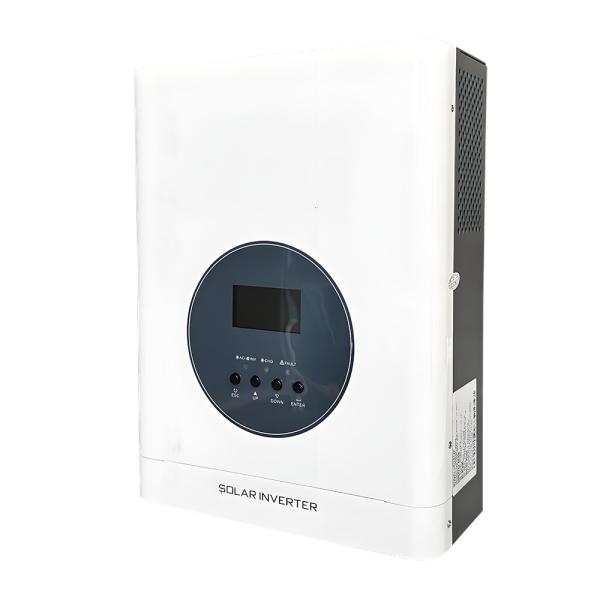

The Solar Inverter UD Series is a pure sine wave inverter designed for residential and commercial use, with a power range from 800W to 10,000W. Compatible with various battery types—including lead-acid, gel, and lithium batteries—it delivers stable and efficient power for diverse energy needs. Featuring MPPT technology, smart battery management, and remote monitoring, the UD Series is the ideal choice for solar power systems.
Key Features
✅ Pure Sine Wave Output
✅ High-Efficiency MPPT (Max 98%)
✅ Smart Battery Management
-
Supports lead-acid, gel, and lithium batteries with adjustable charging current for optimized battery life.
-
Built-in protections: overload, short-circuit, reverse polarity, and low-voltage cut-off.
✅ WiFi/GPRS Remote Monitoring (Optional)
✅ Auto-Diagnosis & Seamless Switching
-
DC start function for quick power-on.
-
Automatic fault detection and self-recovery.
-
Configurable grid-tie voltage for smooth transitions.
✅ Wide Input Voltage Range
✅ Silent Operation (<45dB)
Applications
| model | UDI012AP | UDI512AP | UD1524AP | UD2024AP | UD3024AM | UO5048AM | UD6348AM | U012548AM | UD10048AM |
| Ac input voltage | 220VAC(standard) | 220VAC(standard) |
| Input voltage range | 154-264VAC+3V(Nor Model)185-264VAC+3V(UPs model)
110V机型:77-132VAC+3V(Nor Model)92-132VAC±3V(UPs model) |
| Input frequency | 50/60Hz±5% | 50/60Hz±5% |
| Output power | 1000VA
800W | 1500VA
1200W | 1500VA
1200W | 2000VA
1600W | 3000VA
2400W | 5000VA
4000W | 6300VA
5000W | 10000VA
8000W | 12500VA
10000W |
| AC model output Voltage | The output voltage under the mains is thesame as the input voltage |
| Battery model output voltage | 220VAC+10%(Custom110VAC+10%) |
| Battery model output frequency | 50HZ or 60HZ±1% |
| Battery model output wave | Pure sine wave |
| Battery type | External lead-acid battery,Gel battery,water battery or Lithium battery |
| Battery voltage | 12VDC | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC |
| Battery charging voltage | 13.7VDC | 13.7VDC | 27.4VDC | 27.4VDC | 27.4VDC | 54.8VDC | 54.8VDC | 54.8VDC | 54.8VDC |
| Maximum PV array power | 12V:800W | 24V:1600W | 48V:3200W | 48V:6400W |
| Solar input voltage range | 12V:PWM 15V-50VDC
24V:PWM 30V-105VDC | 24V:MPPT 30V-150VDC
48V:MPPT 60V-150VDC |
| Maximum PV Display
Open Circuit Voltage | 12V: PWM 50VDC
24V: PWM 105VDC | 24V:MPPT 150VDC
48V:MPPT 150VDC |
| Maximum solar charging current | 60A | 120A |
| Maximum AC Charge Current | 27A | 40A | 20A | 30A | 60A | 40A | 50A | 80A | 100A |
| load peak ratio | (MAX)3:1 |
| Protective function | Under themains:input overcurrent fuse
Under inverter: overload protection,short circuit protection, low voltage protection
(with battery anti-reverse connection, board). |
| Status Display | You can view parameters such as Ac voltage, Ac frequency, PVvoltage, Pv current, output voltage
output frequency, battery voltage, load current and other parameters by turning the page keys. |
| Voice prompt | Low batteryprotection ouzzerlona peep
Low batterybuzzer beeps every second
Machine fault buzzer beeps
Overload buzzer beeps
When the overload is less than 130%, the buzzer will sound every second,and
the output will be turned off after 30s. When the overload is greater than150%.the output will be turned off after 300ms. |
| Operating temperature | 0°C~40℃ |
| Storage temperature | -15°C~45°C |
| Relative temperature | -10°C~90℃C no condensation |
| Noise | <45dB |
| size(L*W*H)mm | 465*310*135MM | 545*400*200MM |
|
|
|
