Power Your World with UD Series Solar Inverters – Reliable, Efficient, and Smart Energy Solutions
Uninterrupted Power, Unleashed Potential

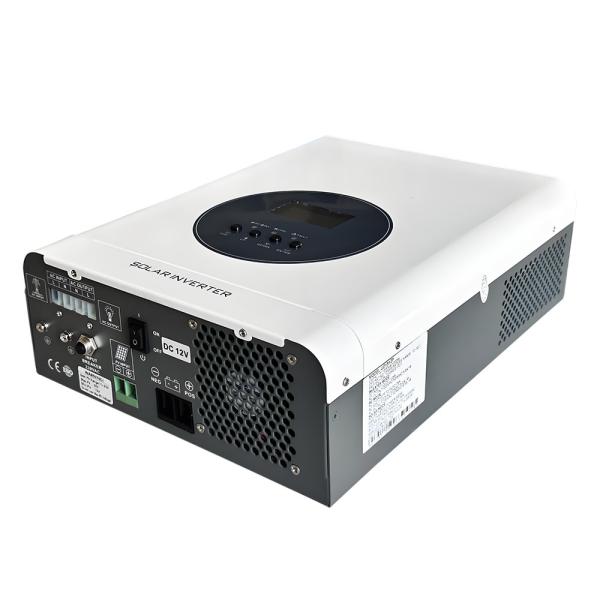

The UD Series Solar Inverters (800W–10,000W) redefine energy independence with cutting-edge technology, delivering pure sine wave output for seamless compatibility with all your devices. Whether for home, business, or industrial use, our inverters ensure stable and efficient power conversion, bridging solar energy, grid power, and battery storage effortlessly.
Key Features
✅ Pure Sine Wave Output – Clean and stable power for sensitive electronics.
✅ High-Efficiency MPPT (98%) – Maximizes solar energy harvest for optimal performance.
✅ Dual Battery Support – Compatible with lead-acid, gel, water, and lithium batteries.
✅ Smart Connectivity – Optional WiFi/GPRS for remote monitoring and control.
✅ Flexible Charging – Adjustable charging current and AC voltage settings.
✅ Robust Protection – Overload, short-circuit, and low-voltage protection with audible alerts.
✅ Generator Integration – Auto-signal to start backup generators when needed.
Technical Excellence
-
Input Voltage Range: 154–264VAC (standard) or customizable 110V models.
-
Output Power: 800W to 10,000W to match diverse needs.
-
Battery Compatibility: 12V/24V/48V systems with optimized charging voltages.
-
Solar Integration: Supports PWM/MPPT controllers with high PV input ranges (up to 150VDC).
-
Environmentally Adaptive: Operates in 0°C–40°C, storage up to -15°C–45°C.
Why Choose UD Series?
✔ Reliability: Built-in diagnostics and DC start-up ensure uninterrupted operation.
✔ Scalability: From compact 465mm units to high-capacity 10kW models.
✔ User-Friendly: LCD display for real-time monitoring of voltage, current, and system status.
✔ Quiet & Compact: Noise levels below 45dB with space-saving designs.
Empower Your Energy Future – Whether off-grid or hybrid, the UD Series Solar Inverters deliver efficiency, durability, and smart control. Go solar, stay powered.
Contact us today to find the perfect model for your needs!
| model | UDI012AP | UDI512AP | UD1524AP | UD2024AP | UD3024AM | UO5048AM | UD6348AM | U012548AM | UD10048AM |
| Ac input voltage | 220VAC(standard) | 220VAC(standard) |
| Input voltage range | 154-264VAC+3V(Nor Model)185-264VAC+3V(UPs model)
110V机型:77-132VAC+3V(Nor Model)92-132VAC±3V(UPs model) |
| Input frequency | 50/60Hz±5% | 50/60Hz±5% |
| Output power | 1000VA
800W | 1500VA
1200W | 1500VA
1200W | 2000VA
1600W | 3000VA
2400W | 5000VA
4000W | 6300VA
5000W | 10000VA
8000W | 12500VA
10000W |
| AC model output Voltage | The output voltage under the mains is thesame as the input voltage |
| Battery model output voltage | 220VAC+10%(Custom110VAC+10%) |
| Battery model output frequency | 50HZ or 60HZ±1% |
| Battery model output wave | Pure sine wave |
| Battery type | External lead-acid battery,Gel battery,water battery or Lithium battery |
| Battery voltage | 12VDC | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC |
| Battery charging voltage | 13.7VDC | 13.7VDC | 27.4VDC | 27.4VDC | 27.4VDC | 54.8VDC | 54.8VDC | 54.8VDC | 54.8VDC |
| Maximum PV array power | 12V:800W | 24V:1600W | 48V:3200W | 48V:6400W |
| Solar input voltage range | 12V:PWM 15V-50VDC
24V:PWM 30V-105VDC | 24V:MPPT 30V-150VDC
48V:MPPT 60V-150VDC |
| Maximum PV Display
Open Circuit Voltage | 12V: PWM 50VDC
24V: PWM 105VDC | 24V:MPPT 150VDC
48V:MPPT 150VDC |
| Maximum solar charging current | 60A | 120A |
| Maximum AC Charge Current | 27A | 40A | 20A | 30A | 60A | 40A | 50A | 80A | 100A |
| load peak ratio | (MAX)3:1 |
| Protective function | Under themains:input overcurrent fuse
Under inverter: overload protection,short circuit protection, low voltage protection
(with battery anti-reverse connection, board). |
| Status Display | You can view parameters such as Ac voltage, Ac frequency, PVvoltage, Pv current, output voltage
output frequency, battery voltage, load current and other parameters by turning the page keys. |
| Voice prompt | Low batteryprotection ouzzerlona peep
Low batterybuzzer beeps every second
Machine fault buzzer beeps
Overload buzzer beeps
When the overload is less than 130%, the buzzer will sound every second,and
the output will be turned off after 30s. When the overload is greater than150%.the output will be turned off after 300ms. |
| Operating temperature | 0°C~40℃ |
| Storage temperature | -15°C~45°C |
| Relative temperature | -10°C~90℃C no condensation |
| Noise | <45dB |
| size(L*W*H)mm | 465*310*135MM | 545*400*200MM |
|
|
|
