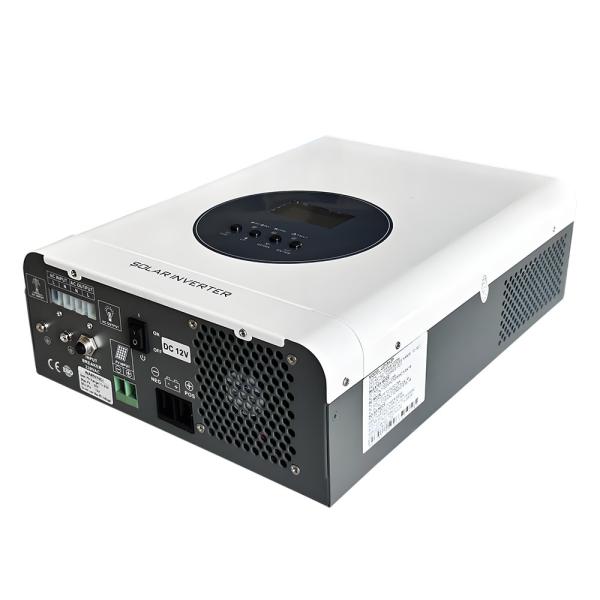

Power Your World with UD Series Solar Inverters – Reliable, Efficient, and Smart Energy Solutions
Uninterrupted Power, Pure Sine Wave Performance
Experience seamless energy conversion with the UD Series Solar Inverters, delivering pure sine wave output for stable and clean power to your sensitive electronics. Whether for home, office, or industrial use, our inverters ensure compatibility with all devices, from appliances to high-end equipment.
Key Features
-
Wide Power Range: Choose from 800W to 10,000W models to match your energy needs.
-
High Efficiency: MPPT charge controller with up to 98% efficiency, maximizing solar energy harvest.
-
Dual Power Modes: Supports both AC input (220V standard) and battery backup (12V/24V/48V), with automatic switching for uninterrupted supply.
-
Smart Battery Compatibility: Works with lead-acid, gel, water, and lithium batteries, featuring advanced charging algorithms for optimized performance.
-
Remote Monitoring: Optional Wi-Fi/GPRS connectivity for real-time tracking and control.
-
Robust Protection: Built-in safeguards against overloads, short circuits, low voltage, and reverse battery connection.
-
User-Friendly Display: Monitor key parameters like PV voltage, battery status, and load current with ease.
Advanced Technology for Smarter Energy
-
DC Start & Self-Diagnosis: Automatic diagnostics ensure reliable operation.
-
Generator Integration: Optional auto-start function for backup generators.
-
Adjustable Charging Current: Customize charging rates based on battery type and application.
-
Flexible Solar Input: Wide PV voltage ranges (PWM/MPPT) for compatibility with diverse solar arrays.
Built to Last
-
Silent Operation: Noise levels below 45dB for peaceful environments.
-
Durable Design: Compact and sturdy, with models sized for easy installation (e.g., 465×310×135mm).
-
Wide Temperature Tolerance: Operates in 0°C–40°C and stores safely in -15°C–45°C.
Ideal Applications
Perfect for off-grid homes, RVs, telecom systems, and renewable energy projects, the UD Series combines cutting-edge technology with unmatched reliability.
Upgrade to Smarter Solar Power Today!
Choose the UD Series – where innovation meets endurance for a sustainable energy future.
| model | UDI012AP | UDI512AP | UD1524AP | UD2024AP | UD3024AM | UO5048AM | UD6348AM | U012548AM | UD10048AM |
| Ac input voltage | 220VAC(standard) | 220VAC(standard) |
| Input voltage range | 154-264VAC+3V(Nor Model)185-264VAC+3V(UPs model)
110V机型:77-132VAC+3V(Nor Model)92-132VAC±3V(UPs model) |
| Input frequency | 50/60Hz±5% | 50/60Hz±5% |
| Output power | 1000VA
800W | 1500VA
1200W | 1500VA
1200W | 2000VA
1600W | 3000VA
2400W | 5000VA
4000W | 6300VA
5000W | 10000VA
8000W | 12500VA
10000W |
| AC model output Voltage | The output voltage under the mains is thesame as the input voltage |
| Battery model output voltage | 220VAC+10%(Custom110VAC+10%) |
| Battery model output frequency | 50HZ or 60HZ±1% |
| Battery model output wave | Pure sine wave |
| Battery type | External lead-acid battery,Gel battery,water battery or Lithium battery |
| Battery voltage | 12VDC | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC |
| Battery charging voltage | 13.7VDC | 13.7VDC | 27.4VDC | 27.4VDC | 27.4VDC | 54.8VDC | 54.8VDC | 54.8VDC | 54.8VDC |
| Maximum PV array power | 12V:800W | 24V:1600W | 48V:3200W | 48V:6400W |
| Solar input voltage range | 12V:PWM 15V-50VDC
24V:PWM 30V-105VDC | 24V:MPPT 30V-150VDC
48V:MPPT 60V-150VDC |
| Maximum PV Display
Open Circuit Voltage | 12V: PWM 50VDC
24V: PWM 105VDC | 24V:MPPT 150VDC
48V:MPPT 150VDC |
| Maximum solar charging current | 60A | 120A |
| Maximum AC Charge Current | 27A | 40A | 20A | 30A | 60A | 40A | 50A | 80A | 100A |
| load peak ratio | (MAX)3:1 |
| Protective function | Under themains:input overcurrent fuse
Under inverter: overload protection,short circuit protection, low voltage protection
(with battery anti-reverse connection, board). |
| Status Display | You can view parameters such as Ac voltage, Ac frequency, PVvoltage, Pv current, output voltage
output frequency, battery voltage, load current and other parameters by turning the page keys. |
| Voice prompt | Low batteryprotection ouzzerlona peep
Low batterybuzzer beeps every second
Machine fault buzzer beeps
Overload buzzer beeps
When the overload is less than 130%, the buzzer will sound every second,and
the output will be turned off after 30s. When the overload is greater than150%.the output will be turned off after 300ms. |
| Operating temperature | 0°C~40℃ |
| Storage temperature | -15°C~45°C |
| Relative temperature | -10°C~90℃C no condensation |
| Noise | <45dB |
| size(L*W*H)mm | 465*310*135MM | 545*400*200MM |
|
|
|
