High-Efficiency MPPT Solar Charge Controller – Power Your World Smarter
Key Features:
-
Wide Voltage Range: Supports 12V/24V/36V/48V systems automatically, with a PV input range of 18-150VDC.
-

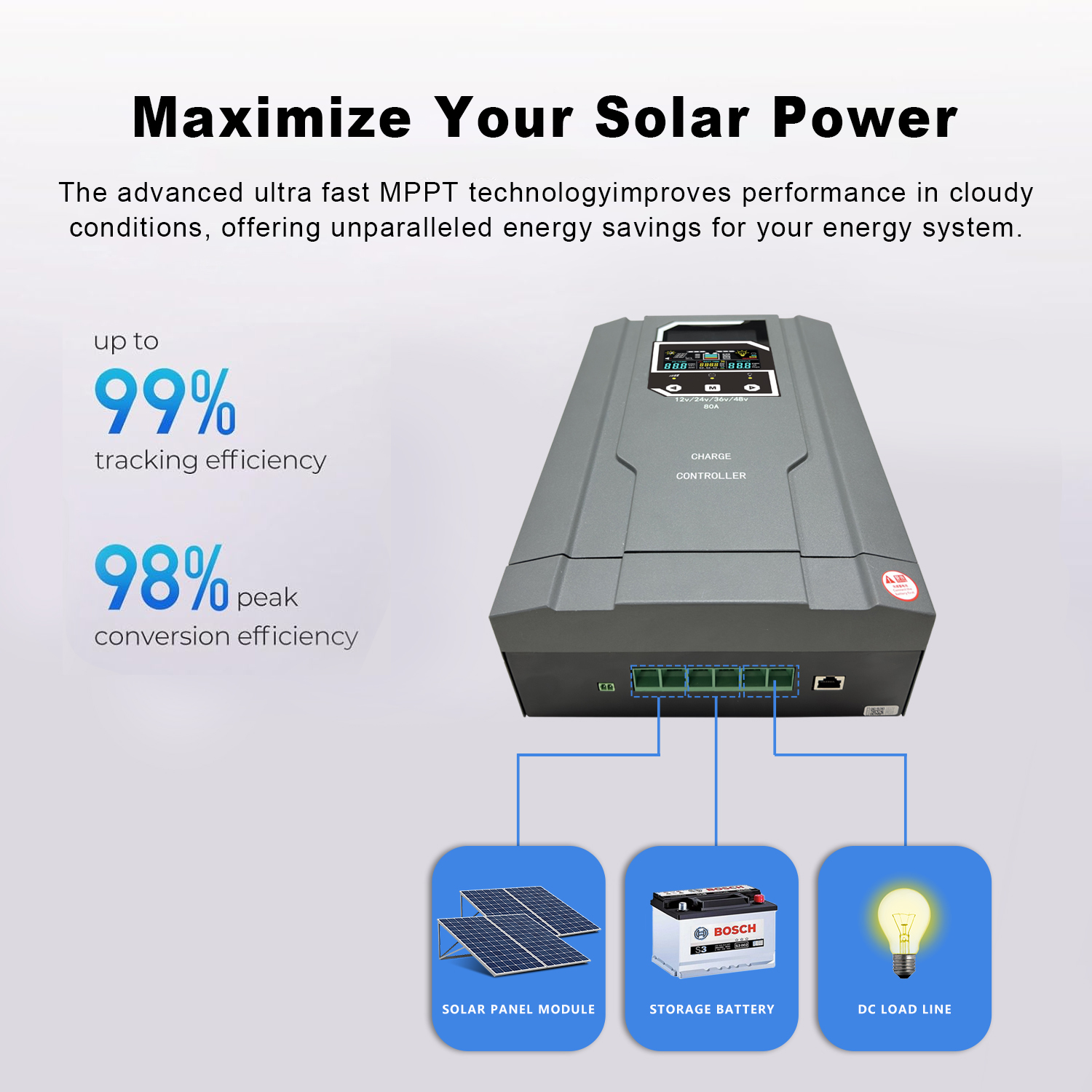

Exceptional Efficiency: 98% power generation efficiency maximizes solar energy harvest.
-
Multiple Current Options: Available in 30A, 40A, 50A, 60A, 80A, and 100A models to suit diverse energy needs.
-
Intelligent Control: Built-in temperature sensor and cooling fan ensure optimal performance and longevity.
-
User-Friendly Interface: HD LCD display with intuitive indicators for solar panel, charging status, and DC load monitoring.
-
Advanced Protections: Comprehensive safety features including overcharge, over-discharge, and short-circuit protection.
-
Flame Retardant Enclosure: Class V-0 rated for enhanced safety.
Smart Connectivity:
-
Remote Monitoring: Supports PC software, WiFi module expansion, and APP cloud monitoring via RS485 communication.
-

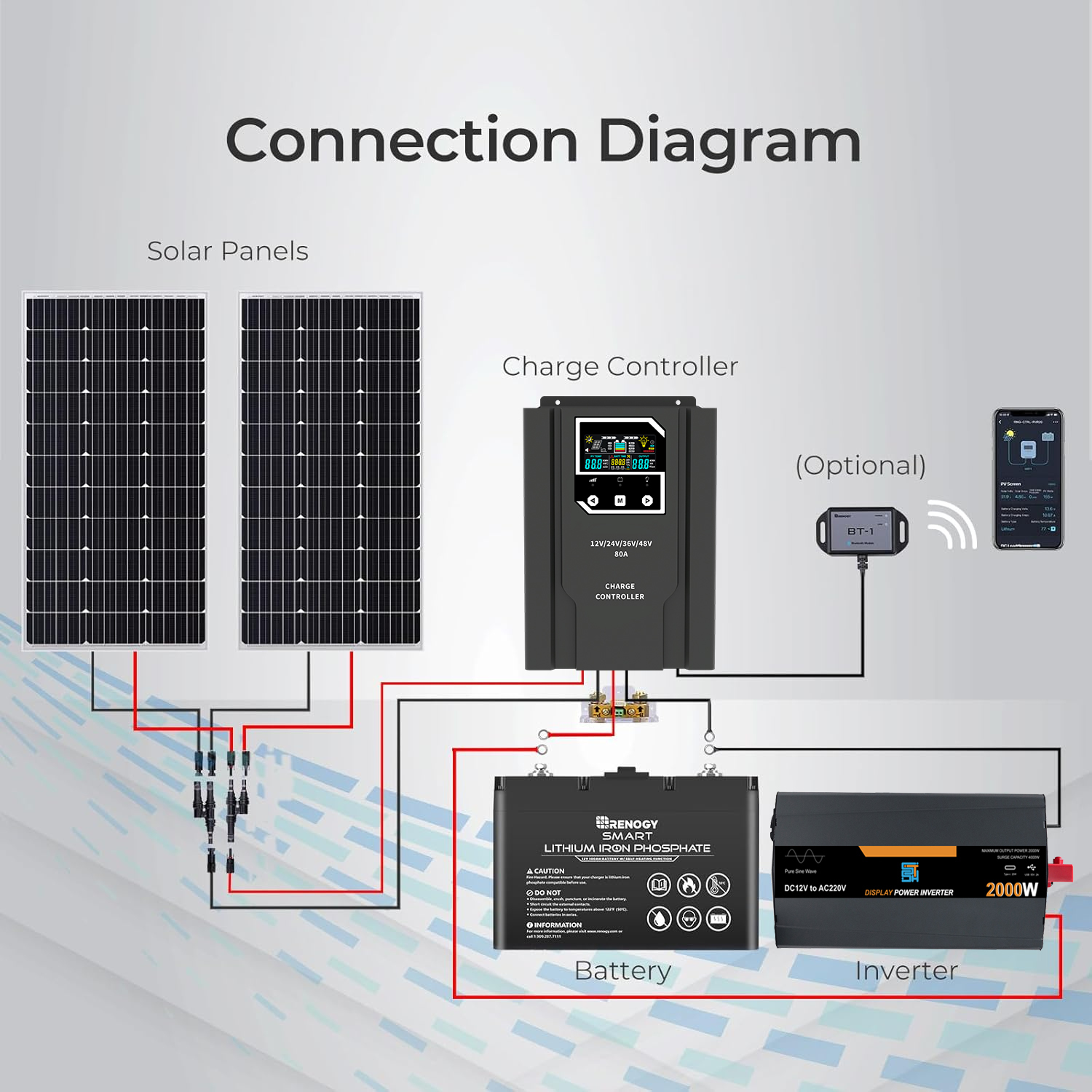

Easy Installation: Clearly labeled terminals for solar panels, batteries, DC loads, and temperature sensors.
| Product Name | MPS 30A | MPS 40A | MPS 60A | MPS 80A | MPS 100A |
| System Rated Voltage | 12/24/36/48VDC or Self-identification |
| Controller operating voltage range | 12-64V |
| Lead-acid battery type | Maintenance-free(default) /Colloid /Liquid /Custom |
| Lithium battery type | Lithium Iron Phosphate /Ternary Lithium /Custom |
| Rated charging current | 30A | 40A | 60A | 80A | 100A |
| Rated charging power | 390W /12V | 540W/12V | 800W/12V | 1040W/12V | 1300W/12V |
| 1080W/24V | 1600W/24V | 2080W/24V | 2600W/24V |
| 1620W/36V | 2400W/36V | 3120W/36V | 3900W/36V |
| 2160W/48V | 3200W/48V | 4160W/48V | 5200W/48V |
| Maximum open ccircuit voltage of photovoltaic modules | 150V (under the lowest temperature condition)
138V (under 25℃ condition) |
|
| Maximum power point operating voltage range | 12V System | 20~150VDC |
| 24V System | 36~150VDC |
| 36V System | 48~150VDC |
| 48V System | 64~150VDC |
| Tracking efficiency | ≥99.5% |
| Maximum conversion efficiency | 97.50% |
| Temperature compensation coefficient | -3mV/ ℃ /2V |
| Statuc loss | 350mA/12V: 170mA/24V: 85mA/48V | 700mA/12V: 350mA/24V: 175mA/48V |
| DC Load output voltage | Can be turned on in 12V/24V Moode |
| DC load rated output current | 40A |
| DC load output control | Normally open ormally closed mode /Time control mode /Light control mode |
| Protective function | PV input reverse connection protection |
| Battery input reverse connection protection |
| Battery overcharge protection |
| Battery under voltage protection |
| Battery over tempearature protection |
| Machine over temperature protection |
| Colling Method | Wind cooling |
| Way of communication | RS485 |
| LDC Backlight time | Default 60S, Backlight mode cab be set |
| Environmental parameters |
| Working environment temperature range | -20℃ ~＋50℃ |
| Storage temperature range | -40℃ ~＋70℃ |
| Relative humidity range | 0 ~ 90%RH |
| Mechanical parameters |

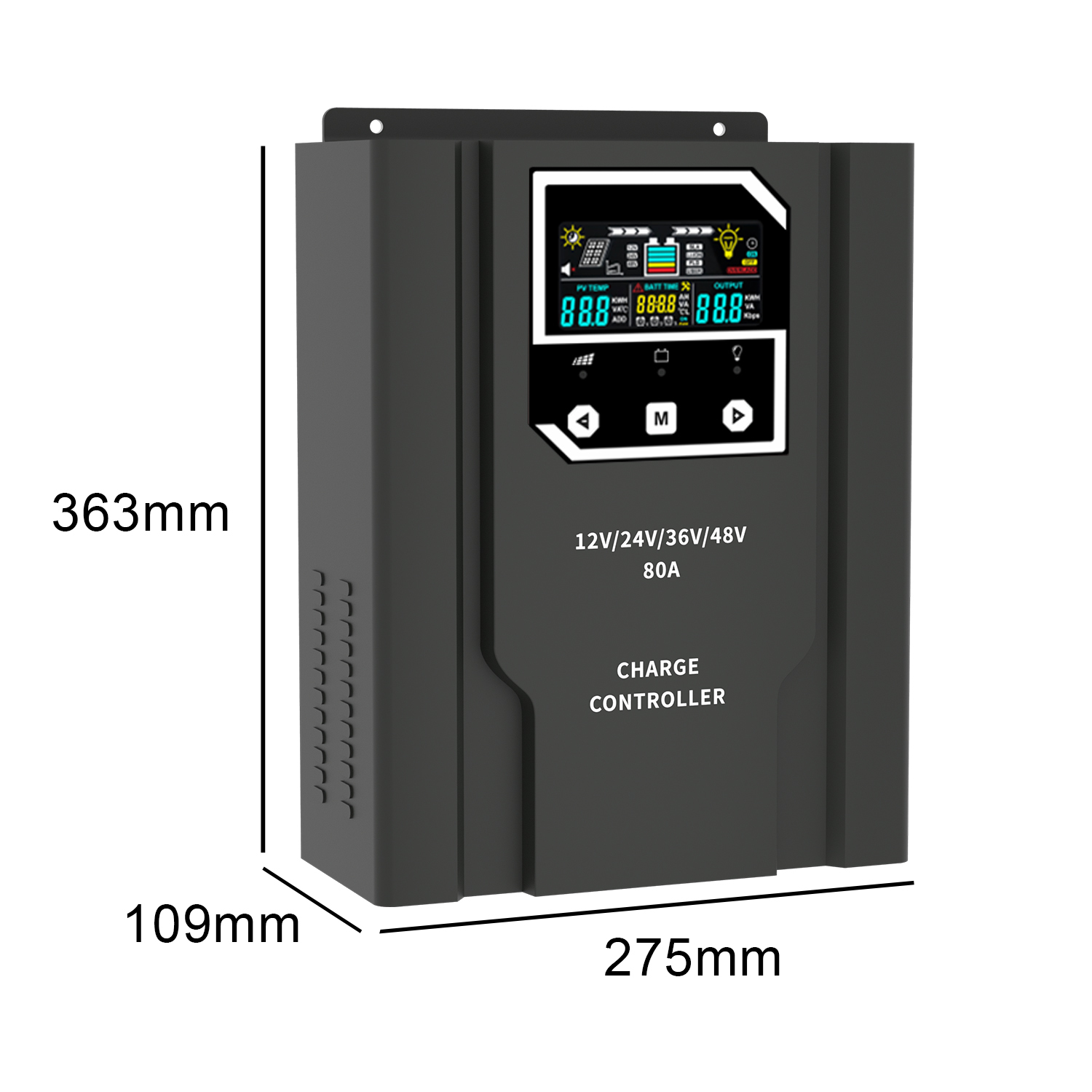

| Dimensions | 210*150*80mm | 219*300*110mm | 219*300*110mm | 275*363*109mm | 275*363*109mm |
| Recommened wiring | 9AWG/6mm² | 7AWG/6mm² | 6AWG/6mm² | 4AWG/6mm² | 2AWG/6mm² |
| Net weight | 1.45kg | 2.94kg | 2.94kg | 4.56kg | 4.56kg |
Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
Sheng Shi Tian He Electronic Technology, brand: SZSSTH it is a manufacturing & trading company with 17 years experience and a professional team for power inverter, solar panel, solar charge controller and solar battery.
We own auto production line equipments and 6000 square meters of workshops. There are 200 employees in company ,
including hardware and software technical research and
development and management staff more than 30.
Our product obtained CE ROHS LVD EMC FC KC SAA PSE UL UKCA REACH
BSCI NF GS PHAS etc certificates. We can meet the needs of
different markets.
We can produce millions units of various types of solar related products with strong corporate strength. We pursue the production of products in high
quality!
We keep the concept of investing in product development and design
innovation continuously. Each product has been undergone meticulous
design and repeated carving.
We are willing to do the Win-Win business and welcome the person who with the same goal to join us from establishment!
