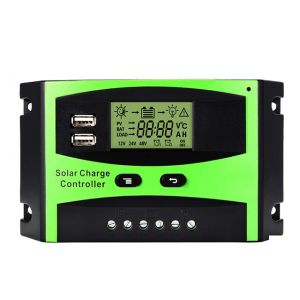

Factory Direct 30A 12V/24V PWM Solar Charge Controller: Essential Protection for Your Solar Investment

Product Categories

Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

Factory Price 60A 12V/24V/48VDC Solar Charge Controller PWM for Solar Power System Home

LED Status Indicators: Real-time monitoring of charging status (PWM pulse), battery level, and fault alerts through intuitive icons
All-Weather Durability: Industrial aluminum housing with passive cooling. Operates at -35°C to +55°C for harsh environments
Load Control: Programmable 12/24V DC output with low-voltage disconnect (LVD) to protect batteries from excessive drainage

Small Off-Grid Systems: Powers cabins, RVs, boats, and gate operators with efficient energy management
Backup Lighting: Reliable control for solar street lights, garden lamps, and security systems
Agricultural Use: Cost-effective solution for livestock fencing, irrigation controllers, and remote monitoring stations

Model	20A	30A	40A	50A	60A
System voltage	12V/24V, 24V /48V (Automatically switch)
The Maximum voltage of the solar panel input	50V (12/24V) ,100V (24V/48V)
Self loss	<13mA
Maximum charge current	20A	30A	40A	50A	60A
Maximum discharge current	20A	30A	40A	50A	60A
LVD	10.5V (9-11V), 21V (18V-22V), 42V (36V-44V)
LVR	12.6V(11-13.5V), 25.2V( 22-27V), 50.4V( 45-54V)
Battery overpressure protection	15V /30V /60V
Charging mode	PWM
Terminal scale	28-10 AWG
Waterproof level	IP32
Product size	1879047mm			19510750mm	18712257mm
Packing size	20010253mm			21011859mm	20013263mm
Weight	780g					850g
