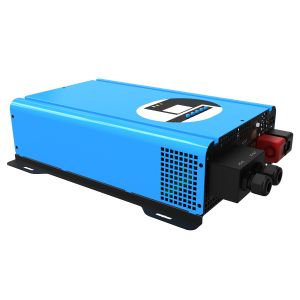

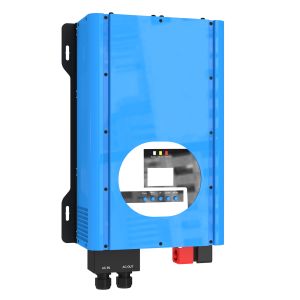

3KW Bidirectional Grid-Tied Inverter with LCD Display

Ask Lasest Price
Brand Name :	SZSSTH/OEM
Model Number :	RA
Price :	CN¥1,315.79/pieces

Add to Cart

Product Details
Company Profile

3KW Bidirectional Grid-Tied Inverter with LCD Display

Professional-Grade Power Conversion for Solar & Off-Grid Applications

Our 2000W Pure Sine Wave Power Inverter provides high-efficiency energy conversion from 12V/24V DC battery systems to 110V/220V AC household power. Designed for solar energy systems, RVs, and emergency backup, this advanced inverter delivers cleaner-than-grid power for sensitive electronics with its true pure sine wave output.

Key Features & Benefits

✔ 2000W Continuous/4000W Surge Power - Handles heavy loads including refrigerators and power tools
✔ Dual Voltage Input (12V/24V DC) - Flexible battery bank compatibility
✔ Switchable Output (110V/220V AC) - Worldwide voltage compatibility
✔ High-Efficiency Conversion ( ≥90%) - Minimizes energy waste
✔ Intelligent LCD Display - Real-time monitoring of voltage, current, and power status
✔ Multi-Protection System - Overload/short-circuit/overheat/low-voltage protection
✔ Silent Operation - Temperature-controlled cooling fan

Electrical specifications

Model
Applicable Battery Type			Lead acid/LiFePO4/NCM battery
Charging Method			Constant current/constant voltage (CC/CV)
Cooling Method			Air Cooling
Charge
Input	Voltage Range		180~264VAC
	Frequency Range		47-63HZ
	Maximum Effciency		≥91% @220VAC
	Maximum Current		15Amax
	PF value		≥0.95
Surge Current		＜60ACold Start
Output	Rated Voltage		13.2V (maximum charging voltage14.8V)
	Rated Current		100A
	Maximum Power		1400W
	Voltage Accuracy		±0.8V
	Current Accuracy		≤8%
	Load Regulation		≤5%
	Dynamic Load Regulation		≤5%
Battery Charging Voltage		10.5V-14.5V

Inverter
Input	Voltage Range		10.5~16V DC
Input	Maxmum Effciency		92%
Maximum Current		180A 12.5V/280A 12.5VDC
Output	Rated Voltage		220Vac @≥12.5 VDC
	Rated Current		13.64A @≥12.5VDC
	Output Frequency		50Hz/60Hz
	Maximum Power		2 000W (peak power4000W) @≥12VDC
			3000W (peak power6000W) @≥12VDC
	Power Factor		≥0.95
	THD		≤3% (resistive load)
	Bypass Power		1800W.MAX(NA)
Charge And Discharge At The Same Time		Charge1400W+Bypass1800W(NA)
Bypass Inverter Switching Time		≤30 ms (NA)
Others	Shell Material		Iron
	Reference Weight		6.1KG
	Color		/
	Reference Size		241 * 345 * 121 mm
	Reference Packaging		/
