    3.5KW Hybrid Solar Inverter 230VAC Off Grid 3500W With MPPT 24V Pure Sine Wave

    Ask Lasest Price
    Model Number : SUF3000S4A1
    Brand Name : SZSSTH
    Price : CN¥1,454.68/pieces 1-99 pieces
    • Product Details
    • Company Profile

    3.5KW Hybrid Solar Inverter 230VAC Off Grid 3500W With MPPT 24V Pure Sine Wave

    3.5KW Hybrid Solar Inverter 230VAC Off Grid 3500W with MPPT 24V Pure Sine Wave for Solar System

    Products Description
    3.5KW Hybrid Solar Inverter 230VAC Off Grid 3500W With MPPT 24V Pure Sine Wave
    3.5KW Hybrid Solar Inverter 230VAC Off Grid 3500W With MPPT 24V Pure Sine Wave
    Product Features 1. Pure sine wave solarinverter 2. Built-in40AMPPT solar charger 3. PVinput voltage range 20~150VDC (for 1000W),30~150VDC(for 1500W)
    4. Built-in anti-dust kit for harsh environment 5. Smart battery charge design to optimize battery lifemeet rich customizeddemands 6. Solar energy is provided directly to the load first
    SUF3000S4A1
    SUF5000S4A1
    BatteyInput
    Battery Type
    Li-lon/Lead-acid
    Li-lon/Lead-acid
    BatteryVoltage
    24Vdc
    48Vdc
    Inverter Output
    Nominal Power(W)
    3000
    5000
    Nominal Apparent Power (VA)
    3000
    5000
    Paralll Capacity
    No
    Yes.9 units maximum
    AC Voltage Regulation (Battery Mode)
    230Vac±5%@50/60Hz
    230Vac±5%@50/60Hz
    Surge Power (VA)
    6000
    10000
    Eficiency (peak)
    93%
    93%
    Waveform
    Pure sine wave
    Pure sine wave
    Transfer Time
    10ms (for personal computers), 15ms (for home appliances)
    SolerCharge
    Max.PV Array Power (W)
    4000
    6000
    MPPT Range @OperatingVoltage
    120Vdc-430Vdc
    120Vdc-430Vdc
    Number of Independent MPP Trackers
    1
    1
    Number of Strings Per MPPT
    1
    1
    Max,Input Current Per MPPT(A)
    16
    18
    Max.PV Array Open Circuit Voltage (V)
    500Vdc
    500Vd
    Max Solar Charge Current (A)
    120
    80
    Ac Charger
    Max.AC Charge Current(A)
    120
    80
    AC Input Voltage (V)
    230Vac
    230Vac
    Voltage Range (V)
    170-280Vac (For PersonalComputers); 90-280 Vac(For Home Appliances)
    Frequency Range(Hz)
    50/60
    50/60
    General
    UserInterface

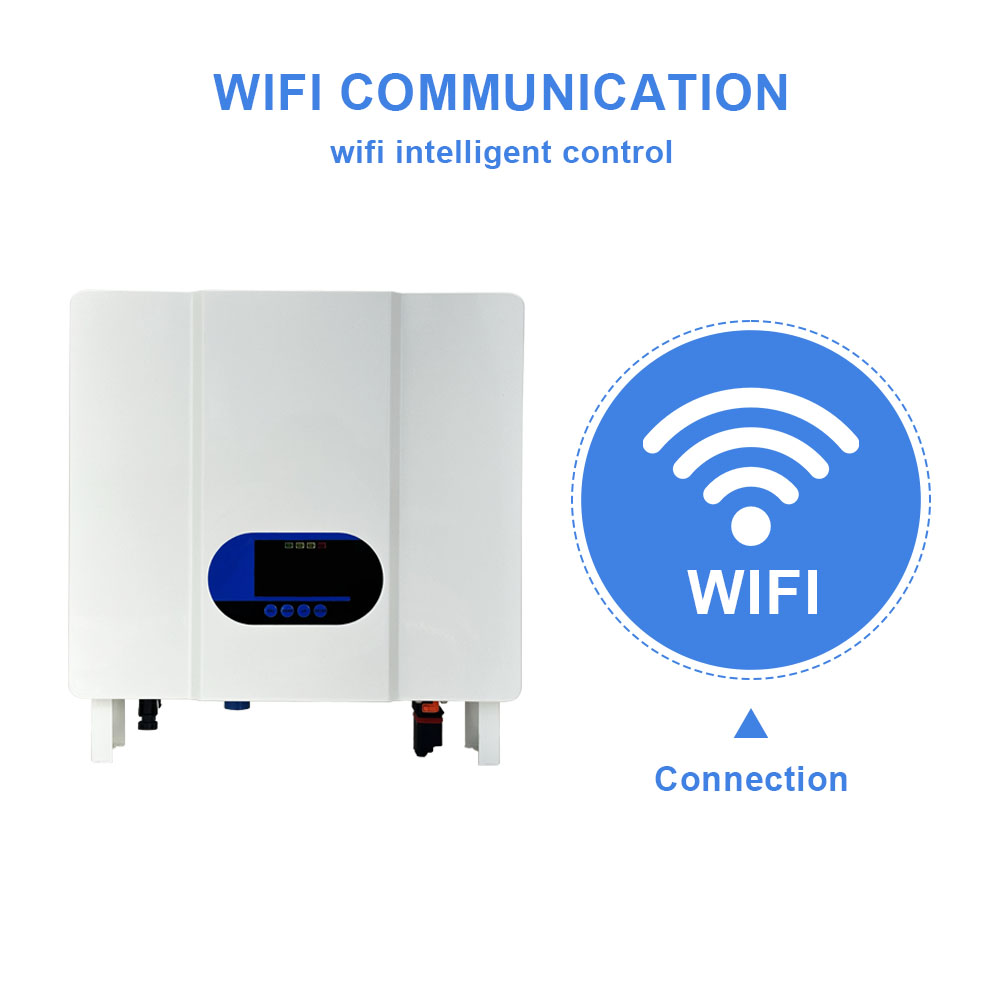

    APP+LCD Display+LED
    Communication
    USB,Optional:Wi-Fi,4G,GPRS,RS485/CAN,Dry-contact
    Ingress Protection Rating
    IP54
    IP54
    Dimension (W*H*D mm)
    300*450*110.5
    300*450*110.5
    Weight (kg)
    7.5 8
    Relative Humidity
    20%~95%
    20%~95%
    Max.Operating Altitude (m)
    2000m, >1000m derating
    2000m,>1000m derating
    Operating Temperature (°C)
    0~50
    0~50
    Storage Temperature (°C)
    [-15~60]
    [-15~60]
    Protection
    PV Over VoltageProtection
    Yes
    PV Over Current Protection
    Yes
    Battery Over Voltage Protection
    Yes
    Battery Over Current Protection
    Yes
    AC Surge Protection
    Type II
    Output OverCurrentProtection
    Yes
    Output Short Circuit Protection
    Yes
    Output OverVoltage Protection
    Yes
