5.5KW 48V Solar Inverter Charge 220V 80A MPPT for Home Appliances Off Grid Electricity Distribution System 8kg

Products Description

Product Features 1.Compatible with most common low-voltage batteries (lead-acid and lithium batteries) 2.5K supports up to 9 units of parallel work 3The maximum charging current reaches 120A 4.LCD screen, user inverter safety interaction design 5.Monitor through WiFi and app; Easy to collaborate with BMS 6.Intelligent Fan Cooling Design

	SUF3000S4A1	SUF5000S4A1
BatteyInput
Battery Type	Li-lon/Lead-acid	Li-lon/Lead-acid
BatteryVoltage	24Vdc	48Vdc
Inverter Output
Nominal Power(W)	3000	5000
Nominal Apparent Power (VA)	3000	5000
Paralll Capacity	No	Yes.9 units maximum
AC Voltage Regulation (Battery Mode)	230Vac±5%@50/60Hz	230Vac±5%@50/60Hz
Surge Power (VA)	6000	10000
Eficiency (peak)	93%	93%
Waveform	Pure sine wave	Pure sine wave
Transfer Time	10ms (for personal computers), 15ms (for home appliances)
SolerCharge
Max.PV Array Power (W)	4000	6000
MPPT Range @OperatingVoltage	120Vdc-430Vdc	120Vdc-430Vdc
Number of Independent MPP Trackers	1	1
Number of Strings Per MPPT	1	1
Max,Input Current Per MPPT(A)	16	18
Max.PV Array Open Circuit Voltage (V)	500Vdc	500Vd
Max Solar Charge Current (A)	120	80
Ac Charger
Max.AC Charge Current(A)	120	80
AC Input Voltage (V)	230Vac	230Vac
Voltage Range (V)	170-280Vac (For PersonalComputers); 90-280 Vac(For Home Appliances)
Frequency Range(Hz)	50/60	50/60
General
UserInterface	APP+LCD Display+LED
Communication	USB,Optional:Wi-Fi,4G,GPRS,RS485/CAN,Dry-contact
Ingress Protection Rating	IP54	IP54
Dimension (W*H*D mm)	300*450*110.5	300*450*110.5
Weight (kg)	7.5 8
Relative Humidity	20%~95%	20%~95%
Max.Operating Altitude (m)	2000m, >1000m derating	2000m,>1000m derating
Operating Temperature (°C)	0~50	0~50
Storage Temperature (°C)	[-15~60]	[-15~60]

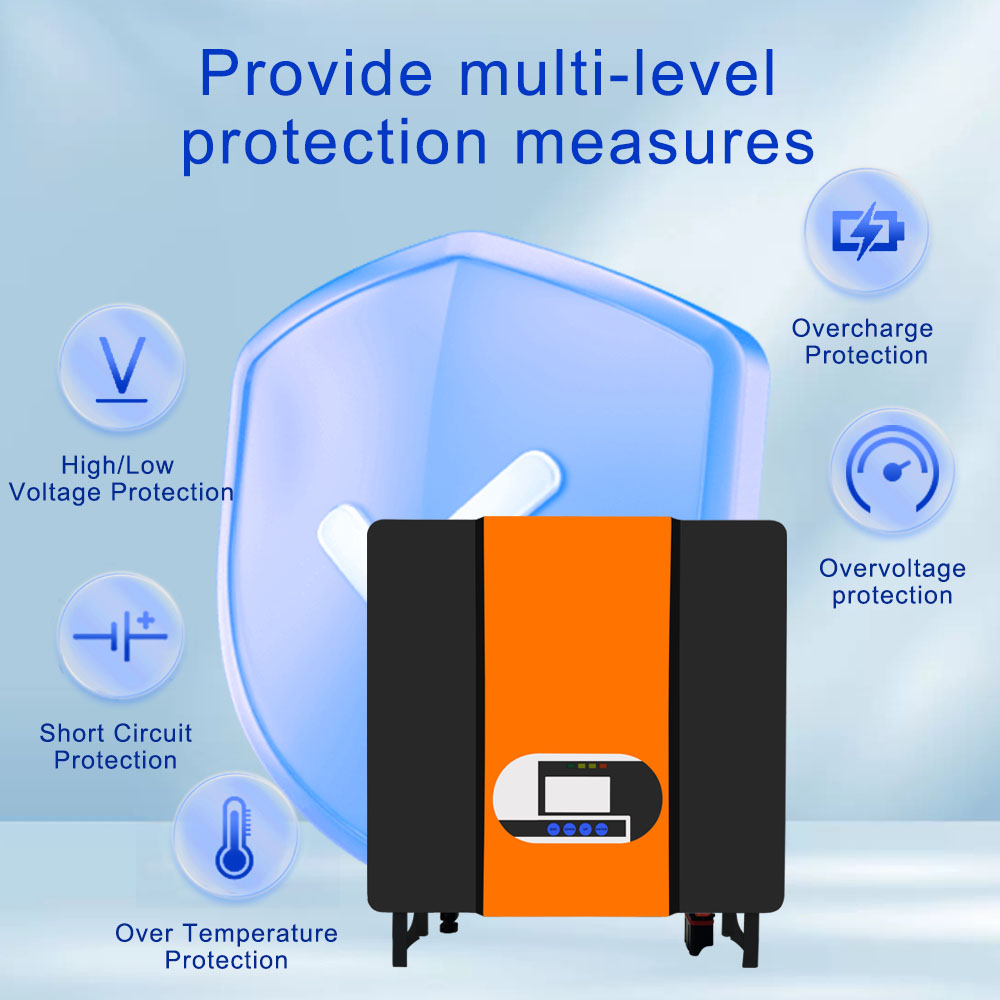

Protection
PV Over VoltageProtection	Yes
PV Over Current Protection	Yes
Battery Over Voltage Protection	Yes
Battery Over Current Protection	Yes
AC Surge Protection	Type II
Output OverCurrentProtection	Yes
Output Short Circuit Protection	Yes
Output OverVoltage Protection	Yes

Recommend Products

Company Profile

Customers' feedback

FAQ

1)Any inquiries will be replied within 24 hours
2)Well-trained and experienced staffs to answer all your enquires influent English.

OEM and ODM available:

1)Print logo on our products.
2)Customized Specification.
3)Customized Color Package box.
4)Any your idea on our products,we can help you to design and put it into production

Before and After-sale service:

1)All products will have been quality checked strictly in test house before packing
2)All products will be well packed before shipping
3)All our products have 2-5 years warranty
and we are sure the product will be free from maintenance within warranty period

Payment term:

T/T, Western Union, Paypal,MoneyGram, L/C are available.

Shipping and delivery:

1)We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS and so on.You can also choose your own shipping forwarder.
2)normal products need About 15-25 days,customized products need about 30-45 days.

Sheng Shi Tian He Electronic Technology, brand: SZSSTH it is a manufacturing & trading company with 17 years experience and a professional team for power inverter, solar panel, solar charge controller and solar battery.

We own auto production line equipments and 6000 square meters of workshops. There are 200 employees in company , including hardware and software technical research and

development and management staff more than 30.

Our product obtained CE ROHS LVD EMC FC KC SAA PSE UL UKCA REACH BSCI NF GS PHAS etc certificates. We can meet the needs of different markets.

We can produce millions units of various types of solar related products with strong corporate strength. We pursue the production of products in high quality!

We keep the concept of investing in product development and design innovation continuously. Each product has been undergone meticulous design and repeated carving.

We are willing to do the Win-Win business and welcome the person who with the same goal to join us from establishment!
