50Hz/60Hz Output Frequency 6200W 48VDC Inverter MPPT On/Off Grid Hybrid Solar Pure Sine Wave Inverter with Lead Acid Battery

Products Description

Product Features 1.Pure sine wave solar inverter(on/off Grid)

2.Output power factor 1.0

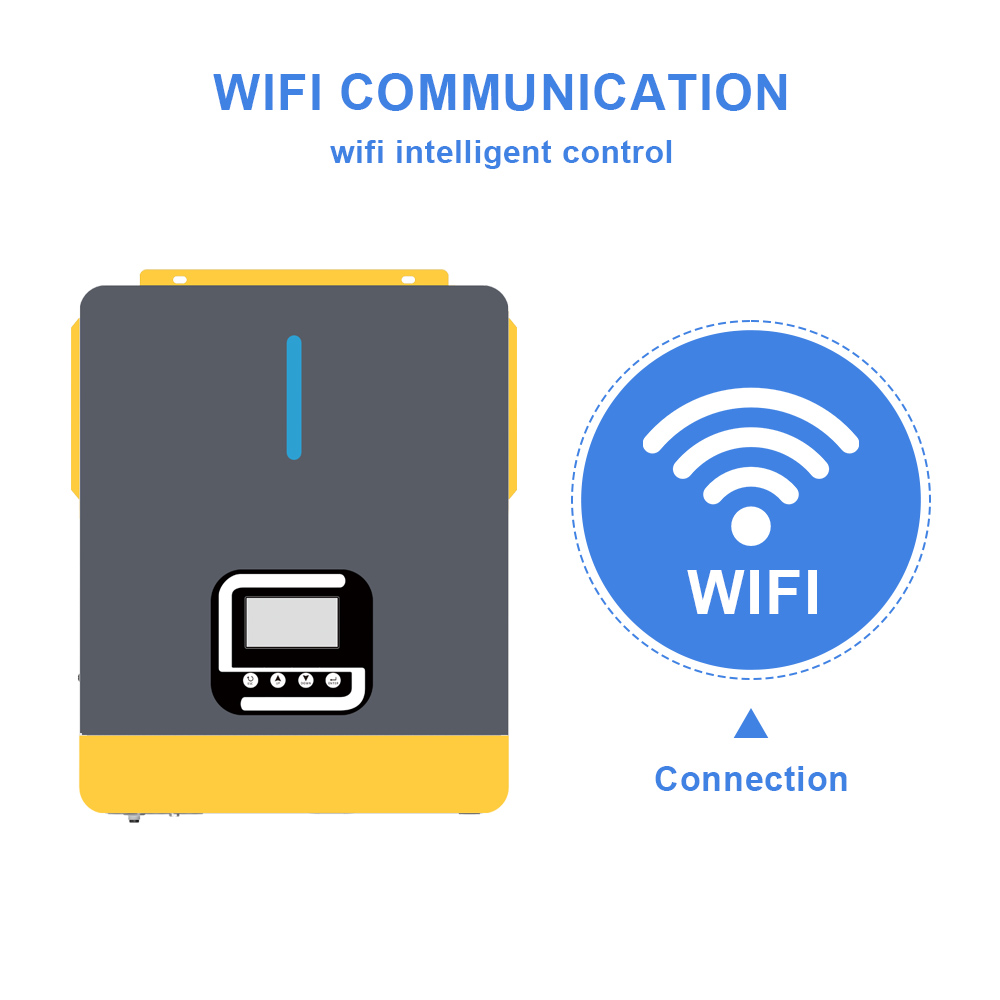

3.WIF&GPRS available for lOS and Android

4.Inverter can run without battery

5.One-key restoration to factory Settings

6.Built-in Lithium battery automatic activation

7.Dual communication ports for Battery communicationand Wifi communication

8.Built-in 140A(for 4.2KW)/120A(for 3.6KW16.2KW)MPPT Solar charge:max 6200W(for 3.6KW/4.2KW)max 6500W (for 6.2KW)

9.High PV input voltage range(60~500VDC)

10.Built-in anti-dust kit for harsh environment

11.Smart battery charge design to optimize battery life

12.Dual output

MODEL	VICTOR NM-ECO-3.6KWPLUS	VICTOR NM-ECO-4.2KWPLUS	VICTOR NM-ECO-6.2KWPLUS
Phase	1-phase
Maximum PV Input Powe	6200W	6200W	6500W
Rated Output Power	3500W/3600VA	4200W/4200VA	6200W/6200VA
Maximum Solar Char gig Current	120A	140A	120A
GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
Start-up Voltage /Initial Feeding Voltage	60VDC/90VDC
MPPT Voltage Range	60-450VDC
Maximum Input Current	1/18A			1/22A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230240VAC
Output Voltage Range	195.5-253VAC
Nominal Output Curren	15.7A	18.2A	27.0A
Power Factor	>0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	98%
TWO LOAD OUTPUT POWER
Full Load	360DW	42DDW	6200W
Maxium Main Load	350DW	4200W	6200W
Maxium Second Load(battery mode)	1200W	1400W	2067W
Maxium Load Cut Off Voltage	26VDC	26VDC	52VDC
Maxium Load Return Voltage	27VDC	27VDC	54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Volta ga Range	90-280VACor 170-280VAC
Frequency Range	49-51±1HZ
Maximum AC Input Current	30A	30A	40A
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
MPPT Voltage Range	60-450VDC
Maximum Input Current	1/18A			1/22A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Oul put Waveform	Pure sine wave
Eficiency (DC to AC)	94%
BATTERY&CHARGER
Nominal DC Voll age	24VDC			48VDC
Maximum Solar Charging Current	120A	140A	120A
Maximum AC Charging Current	100A	100A	100A
Maximum Solar+AC Charging Current	120A	140A	120A
HYBRID OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
Start-up Voltage /initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	60-450VDC
Maximum Input Curren	1/18A			1/22A
GRID OUTPUT(AC)
Nominal Output Voltage	220(230/240VAC
Output Molt age Range	195.5-253VAC
	15.7A	18.2A	27.0A
AC INPUT
AC Start-up Voltage /Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VACor 170-280VAC
Maximum AC lnput Current	30A	30A	40A
Maximum AC Charging Current	100A
GENERAL
PHYSICAL
Dimension, D*W*H(mm)	420*350*110
Cartoon Dimension, D“W*H(mm)	500*416*180
Net Weight(kgs)	8	8	8.9
Gross Weight(kgs]	9	9	10
INTER ACE
Communication Port	RS 232/R 8485/WIFI/GPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non~condensing)
Cpa rating Temperature
STANDARD
Compliance Safety	CE
