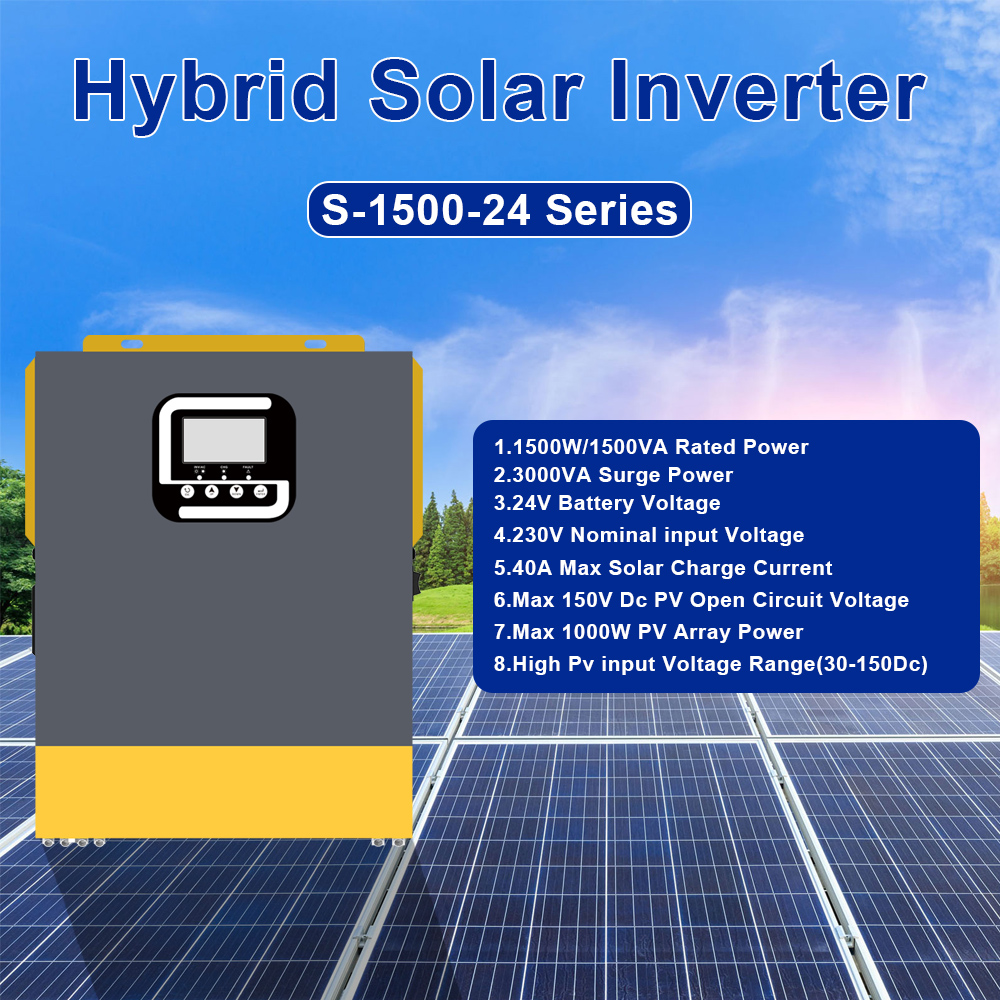

Pure Sine Wave 1.5KW 24V MPPT Hybrid Off-Gird Solar Inverter for Solar Home System Output Frequency 50Hz/60Hz ROHS Certified

Products Description

Product Features

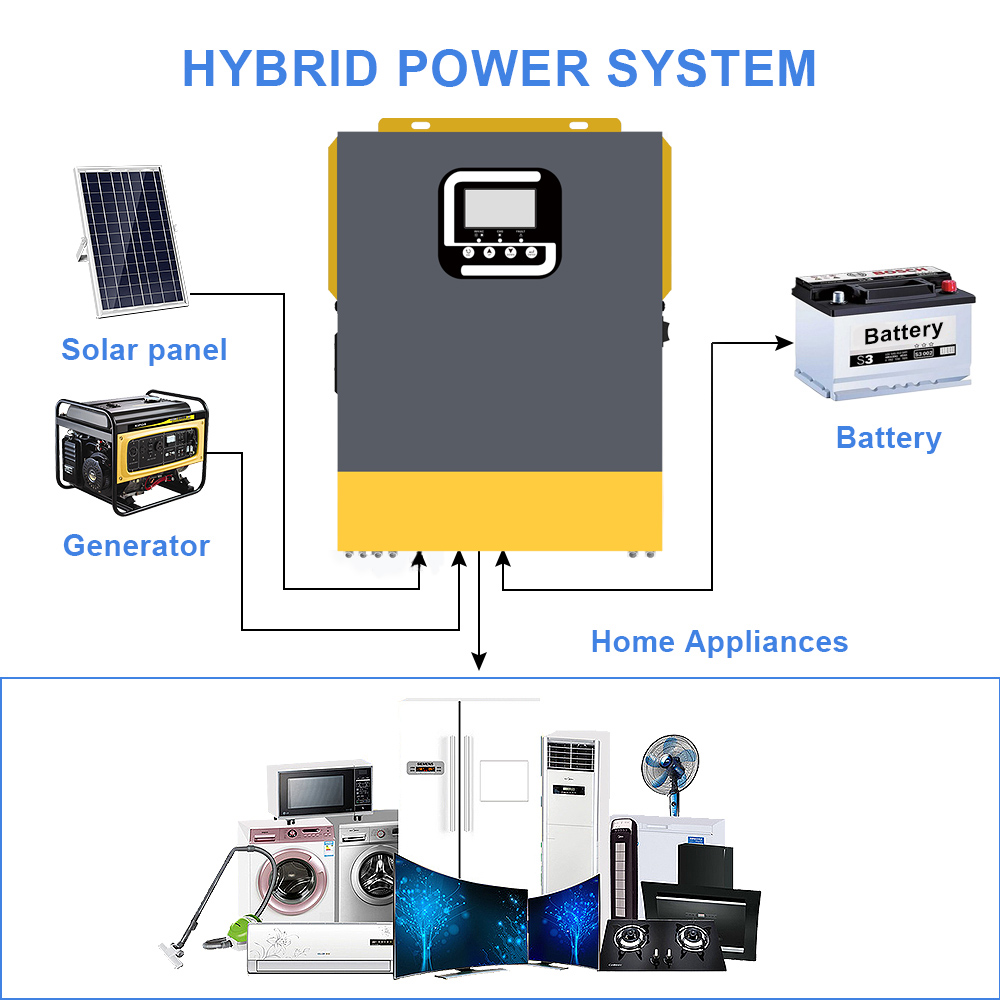

1.Pure sine wave solar inverter 2.Built-in 40A MPPT solar charger 3.PVinput voltage range20-150VDC (for 1000W),30~150VDC(for 1500W)Built-in anti-dust kit for harsh environment 4.Smart battery charge design to optimize battery life 5.meet rich customized demands 6.Solar energy is provided directly to the load first

Model	VICTOR NMS-1000-12	VICTOR NMS-1500-24
RATED POWER	1000W/1000VA	1500W/1500VA
AC Input
Voltage	230VAC
Selectable Voltage Range	170~280VAC(For Personal Computers)
		90~280VAC(For Home Appliances)
Frequency Range	50Hz/60Hz(Autosensing)
AC OUTPUT
AC Voltage Regulation	230VAC±5%
Surge Power	2000VA	3000VA
Efficiency(Peak) PV to IN V	98%
Efficiency(Peak) Battery to IN V	94%
Transfer Time	10ms
BATTERY
Battery Voltage	12VDC	24VDC
Floating Charge Voltage	13.5VDC	27VDC
Overcharge Protection	16VDC	32VDC
SOLAR CHARGER&AC CHARGER
Solar Charger Type	MPPT
Maximum PV Array Power	600W	1200W
MPPT Range@Operating Voltage	20~150VDC	30-150VDC
Maximum PV Array Open Circuit Voltage solar	150VDC
Maximum Solar Charging Current	40A
Maximum AC Charging Current	40A
Maximum Solar+AC Charging Current	80A
PHYSICAL
Dimension, D*W*H(mm)	290*240*91
Cartoon Dimension, D“W*H(mm)	340*295*145
Net Weight(kgs)	3.5	3.6
Gross Weight(kgs}	4.0	4.2
ENVIRONMENT
Humidity	5%to 95%Relative Humidity(Non-condensing)
Operating Temperature	-10℃-50℃
STANDARD
Compliance Safety	CE

Recommend Products

Company Profile

Customers' feedback

FAQ

1)Any inquiries will be replied within 24 hours
2)Well-trained and experienced staffs to answer all your enquires influent English.

OEM and ODM available:

1)Print logo on our products.
2)Customized Specification.
3)Customized Color Package box.
4)Any your idea on our products,we can help you to design and put it into production

Before and After-sale service:

1)All products will have been quality checked strictly in test house before packing
2)All products will be well packed before shipping
3)All our products have 2-5 years warranty
and we are sure the product will be free from maintenance within warranty period

Payment term:

T/T, Western Union, Paypal,MoneyGram, L/C are available.

Shipping and delivery:

1)We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS and so on.You can also choose your own shipping forwarder.
2)normal products need About 15-25 days,customized products need about 30-45 days.
