Customized 10W 20W 30W 50W 60W 80W 100W 150W 200W 300W waterproof PET solar panels thin film flexible transparent solar panel

Products Description

Customized 10W 20W 30W 50W 60W 80W 100W 150W 200W 300W waterproof PET solar panels thin film flexible transparent solar panel

1.High efficiency: The efficiency of Mono crystalline solar panel is up to 19%, so it can capture more sunlight than conventional solar panels which is 15% or even lower.

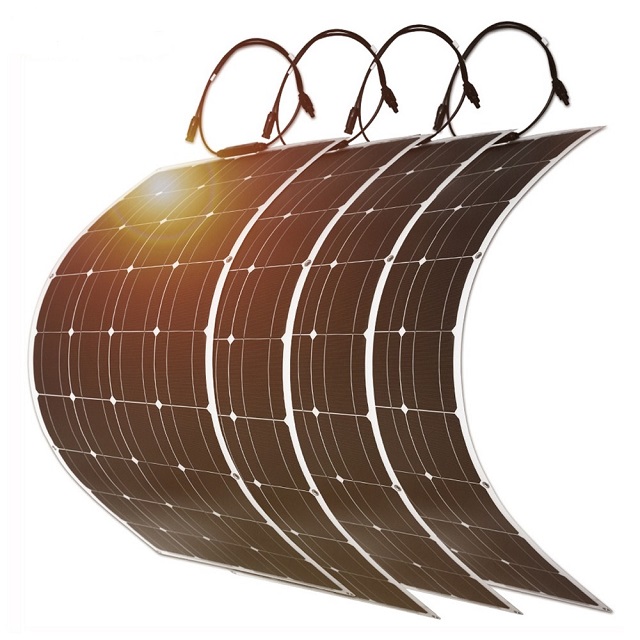

2.Flexible and convenient: It can be curved to a maximum 30 degree arc, which makes it ideal for storage in tight spaces or crowded areas, easier to transport, hang and install.

3.Durable: The water resistant flexible solar panel is far more durable than traditional glass and aluminum models; The junction box is sealed and waterproof.

4.Safety Protection: Short circuit and surge protection technology keep you and your devices safe.

5.Widely compatible: Applicable for RV, boat, cabin, tent, yachts, car, trucks, trailers or any other irregular surface.

Product Paramenters

Power	50Watt
Material	Monocrystalline Solar panel
Solar cell	Mono 156*156 Cell
Optimum Operating Voltage/Vmp	18V
Optimum Operating Current/Imp	2.7A
Open Circuit Voltage /Voc	21V
Short Circuit Current /Isc	3.0A
Numbers of cells	10 (2*5)
Junction box waterproof rate	IP67 Rated
Working temperature	(-40)℃ to (+80)℃
Connect cable	90cm with Connector

Details Images

Recommend Products

100W 200W 300W 400W Rigid solar panel

100W 200W 300W 400W PET semi-flexible solar panel

Company Profile

FAQ

Q1 Advantage for transparent flexible solar panel
A1: flexible solar panel, bump surface, increase light absorption. Rigid solar panel, smooth surface, easy to reflect light, reduce the absorption efficiency

Q2 what is the MOQ for solar panel special design
A2: MOQ is 100pcs for special design

Q3 what is the packing method for solar panel
Sample using carton packing, mass production using pallet for transportation

Q4 what is your company's after sale service?
A: If the problem can be easy fix by customer, we show client how to fix it by picture and words.

B: If need the parts can fix the problem, then we send the parts for free.
C: If the problem can't be fixed on client's side, we will send new goods together with the next order. And arrange forwarder
company to fetch all defective products at one time, then delivery it back to China.

Sheng Shi Tian He Electronic Technology, brand: SZSSTH it is a manufacturing & trading company with 17 years experience and a professional team for power inverter, solar panel, solar charge controller and solar battery.

We own auto production line equipments and 6000 square meters of workshops. There are 200 employees in company , including hardware and software technical research and

development and management staff more than 30.

Our product obtained CE ROHS LVD EMC FC KC SAA PSE UL UKCA REACH BSCI NF GS PHAS etc certificates. We can meet the needs of different markets.

We can produce millions units of various types of solar related products with strong corporate strength. We pursue the production of products in high quality!

We keep the concept of investing in product development and design innovation continuously. Each product has been undergone meticulous design and repeated carving.

We are willing to do the Win-Win business and welcome the person who with the same goal to join us from establishment!
