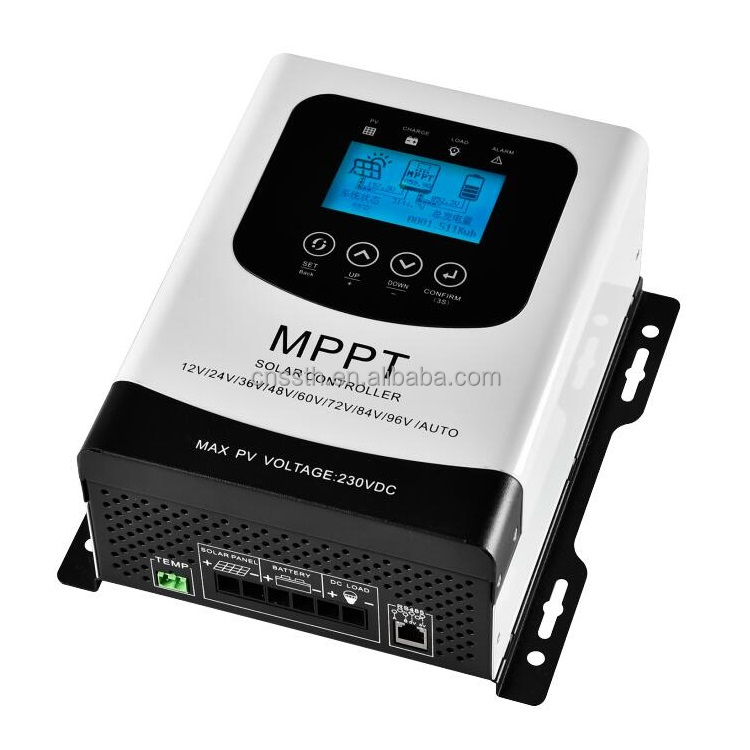

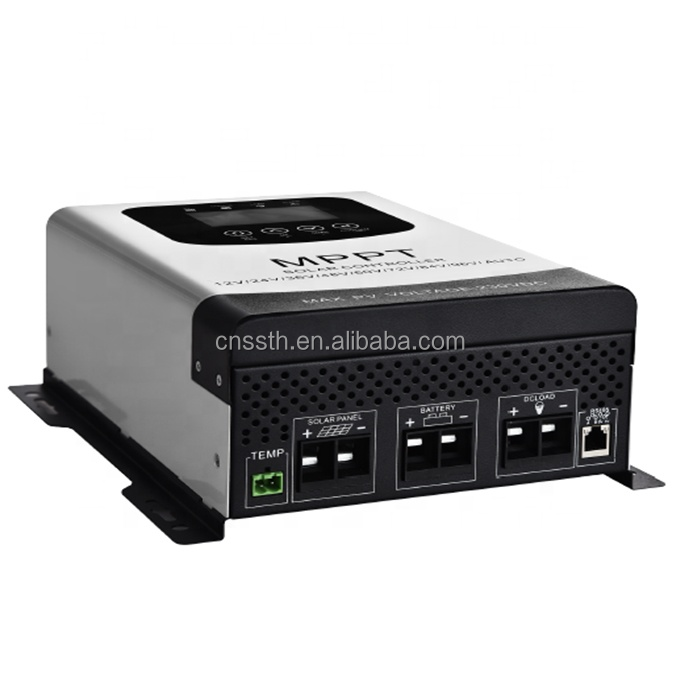

13800W 60A MPPT Solar Controller For 12V 24V 36V 48V 60V 72V 84V 96V Inverter System

Ask Lasest Price
Brand Name :	SZSSTH
Model Number :	50A/60A
Price :	CN¥1,016.83/pieces >=1 pieces

Add to Cart

Product Details
Company Profile

13800W 60A MPPT Solar Controller For 12V 24V 36V 48V 60V 72V 84V 96V Inverter System

Product Description

Max PV 230V High Voltage 12V 24V 36V 48V 60V 72V 96V 60A MPPT Solar Charge Controller 50A 50 Amp Solar Charge Controller

Thank you for interested in new generation of MPPT controller produced by our company. It is a product developed according to the latest technology, representing the latest level of photovoltaic technology development, and has many excellent performances. Basic function: 1.Innovative maximum power point tracking technology can significantly improve the energy utilization rate of the solar system, with a conversion efficiency of up to 97%; 2.Quickly scan the entire I-V curve, and efficiently track the maximum power point; Three types of lead-acid batteries, sealed, colloidal, and open type, and lithium battery series are optional; 3.With automatic protection of overcharge, overdischarge, overload and short circuit; RS485 communication interface, multi-machine communication communication is possible, which is convenient for viewing the operating parameters of the controller; Feature of our MPPT solar charge controller: This controller is used in solar off-grid power generation systems to automatically adjust battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery; at the same time, its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage. The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance. Its comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures. Although the controller is easy to operate and use, in order to enable you to better use all the functions of the controller and improve your photovoltaic system, please read the instructions and instructions in this manual carefully.

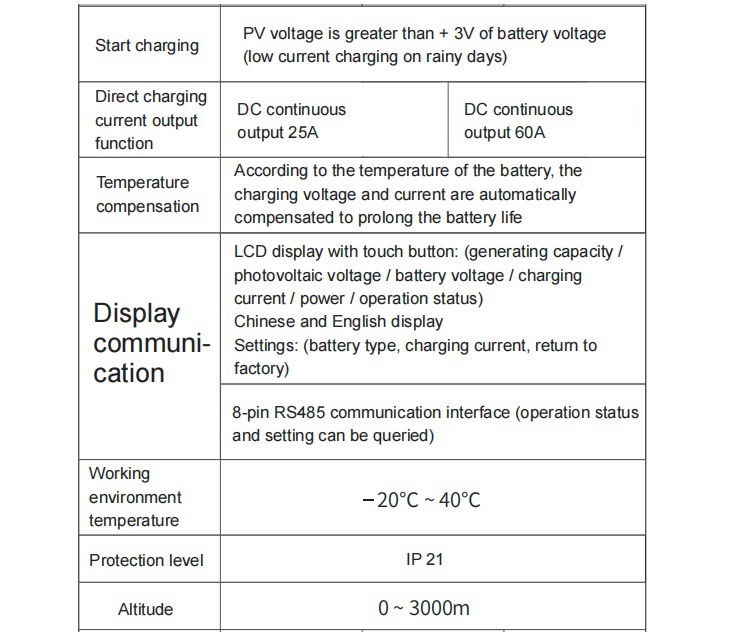

Specification

Type	MPPT
Application	Charger Controller, Solar Working Station, Solar System Controller
Work Time (h)	24 hours
Max PV Power	13800W
Max PV Voltage	230V
Certificate	CE ROHS
Warranty	1 Year
Prodct name	PV Regulador Solar Charge MPPT 60A 50A Controller MPPT Solar Charge
Battery type	Lead Acid,Gel,Lifepo4,Li-ion,USER
Charge Method	MPPT tracks maximum power,fast charge,balanced charge,and float charge
Charge mode	MPPT automatic maximum power tracking
PV maximum open circuit input voltage	0-230V
DC Voltage	12V/24V/36V/48V/60V/72V/84V/96V automatic
Protection Level	IP 21
Charge Current	50A or 60A
Altitude	0~3000m
Working Temperature( C)	-20- 40

Packing & Delivery

50A Package information: 1. Product size: 202*215*100mm Gross weight size: 285*230*128mm Carton size: 575*480*290mm 2. Net weight: 1.9kg Gross weight: 2.2kg Packing weight: 18.8kg Packing quantity: 8 sets 60A Package information: 1. Product size: 218*265*100mm Gross weight size: 325*245*128mm Carton size: 500*340*272mm 2. Net weight: 2.6kg Gross weight: 3kg Packing weight: 12.8kg Packing quantity: 4 sets
