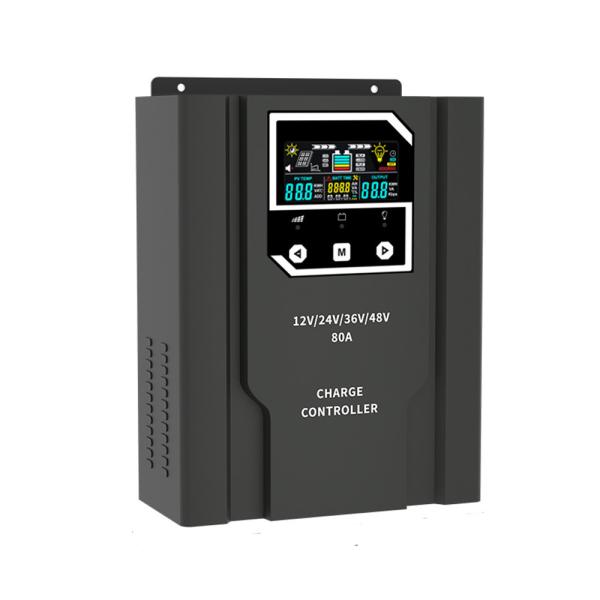

New Design Max PV 150V 12V 24V 36V 48V 40 Amp 40A Mppt Solar Charge Controller 60 Amp

Product Name

MPS 30A

MPS 40A

MPS 60A

MPS 80A

MPS 100A

System Rated Voltage

12/24/36/48VDC or Self-identification

Controller operating voltage range

12-64V

Lead-acid battery type

Maintenance-free(default) /Colloid /Liquid /Custom

Lithium battery type

Lithium Iron Phosphate /Ternary Lithium /Custom

Rated charging current

30A

40A

60A

80A

100A

Rated charging power

390W /12V

540W/12V

800W/12V

1040W/12V

1300W/12V

1080W/24V

1600W/24V

2080W/24V

2600W/24V

1620W/36V

2400W/36V

3120W/36V

3900W/36V

2160W/48V

3200W/48V

4160W/48V

5200W/48V

Maximum open ccircuit voltage of photovoltaic modules

150V (under the lowest temperature condition) 138V (under 25℃ condition)

Maximum power point operating voltage range

12V System

20~150VDC

24V System

36~150VDC

36V System

48~150VDC

48V System

64~150VDC

Tracking efficiency

≥99.5%

Maximum conversion efficiency

97.50%

Temperature compensation coefficient

-3mV/ ℃ /2V

Statuc loss

350mA/12V: 170mA/24V: 85mA/48V

700mA/12V: 350mA/24V: 175mA/48V

DC Load output voltage

Can be turned on in 12V/24V Moode

DC load rated output current

40A

DC load output control

Normally open ormally closed mode /Time control mode /Light control mode

Protective function

PV input reverse connection protection

Battery input reverse connection protection

Battery overcharge protection

Battery under voltage protection

Battery over tempearature protection

Machine over temperature protection

Colling Method

Wind cooling

Way of communication

RS485

LDC Backlight time

Default 60S, Backlight mode cab be set

Environmental parameters

Working environment temperature range

-20℃ ~＋50℃

Storage temperature range

-40℃ ~＋70℃

Relative humidity range

0 ~ 90%RH

Mechanical parameters

Dimensions

210*150*80mm

219*300*110mm

219*300*110mm

275*363*109mm

275*363*109mm

Recommened wiring

9AWG/6mm²

7AWG/6mm²

6AWG/6mm²

4AWG/6mm²

2AWG/6mm²

Net weight

1.45kg

2.94kg

2.94kg

4.56kg

4.56kg
