12V/24V Charge Controllers 30Ah MPPT 30A Solar MPPT Controller for Solar System Control

Why choose us

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control

Product Description

China Factory 12 Vot 24 Volt 12V/24V Charge Controllers 30Ah MPPT 30A Solar MPPT Controller

Parameters/Model	MN10	MN20	MN30	MN40
Maximum Power Current	12A	20A	30A	40A
Installation Lin mm2	4mm2	8mm2	10mm2	12mm2
Installation Line(AWG)	10 (AWG)	8(AWG)	7(AWG)	6(AWG)
Weight	280g	300g	475g	480g
Dimensions	143×89×46 mm		1879761 mm
System load loss	≤13mA
Loop Buck	≤100mV
Battery float voltage	13.8V 12V system /27.6V 24V system
Battery under voltage) protection	10.6V 12V system /21.2V 24V system
Battery (under voltage) recovery voltage	12.6V 12V system /25.2V 24V system
Charge mode	MPPT MODE
Operating Temperature	-10~60°C
Storage Temperature	-30~70°C
Humidity requirements	≤90%, No condensation
Temperature compensation	-4mV/Cell/°C
Temperature Probe (built components)	TC 100K thermistats
aximum open circuit voltage of the solar panel	18V-24V 12V system 36V-48V 24V system)
Solar panels maximum open circuit voltage (V)	≤48V
(Cases) 12V system standard configuration
The peak voltage of the solar cell panel	18V-25V	18V-25V	18V-25V	18V-25V
Peak power of solar cell panel	50W-130W	100W-260W	200W-380W	≤500W

Product Details

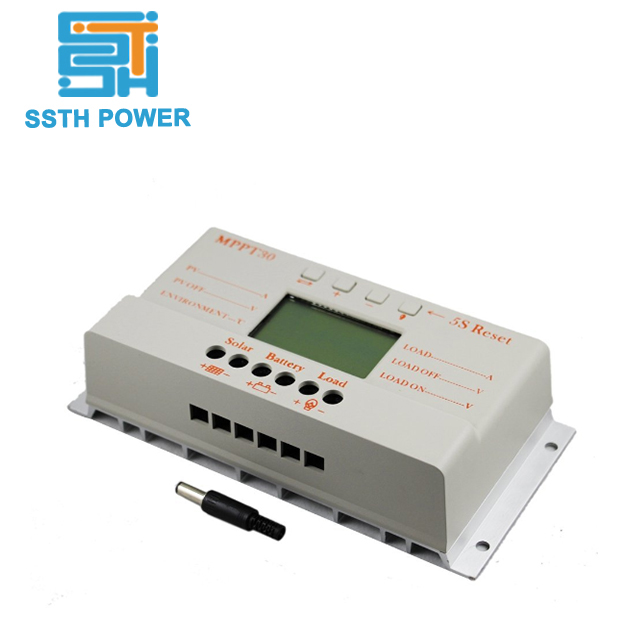

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control

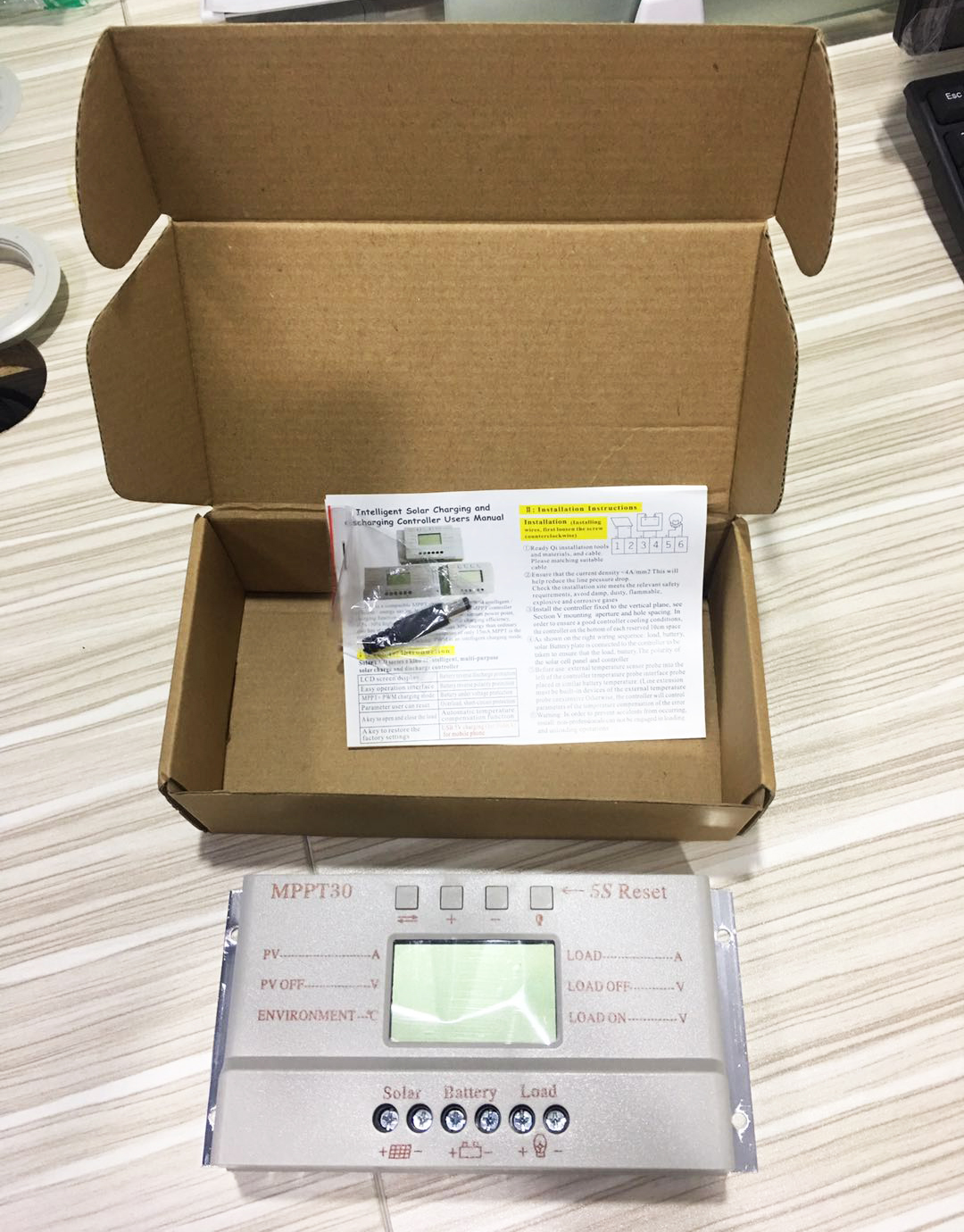

30 Amp MPPT Solar Charge Controller
